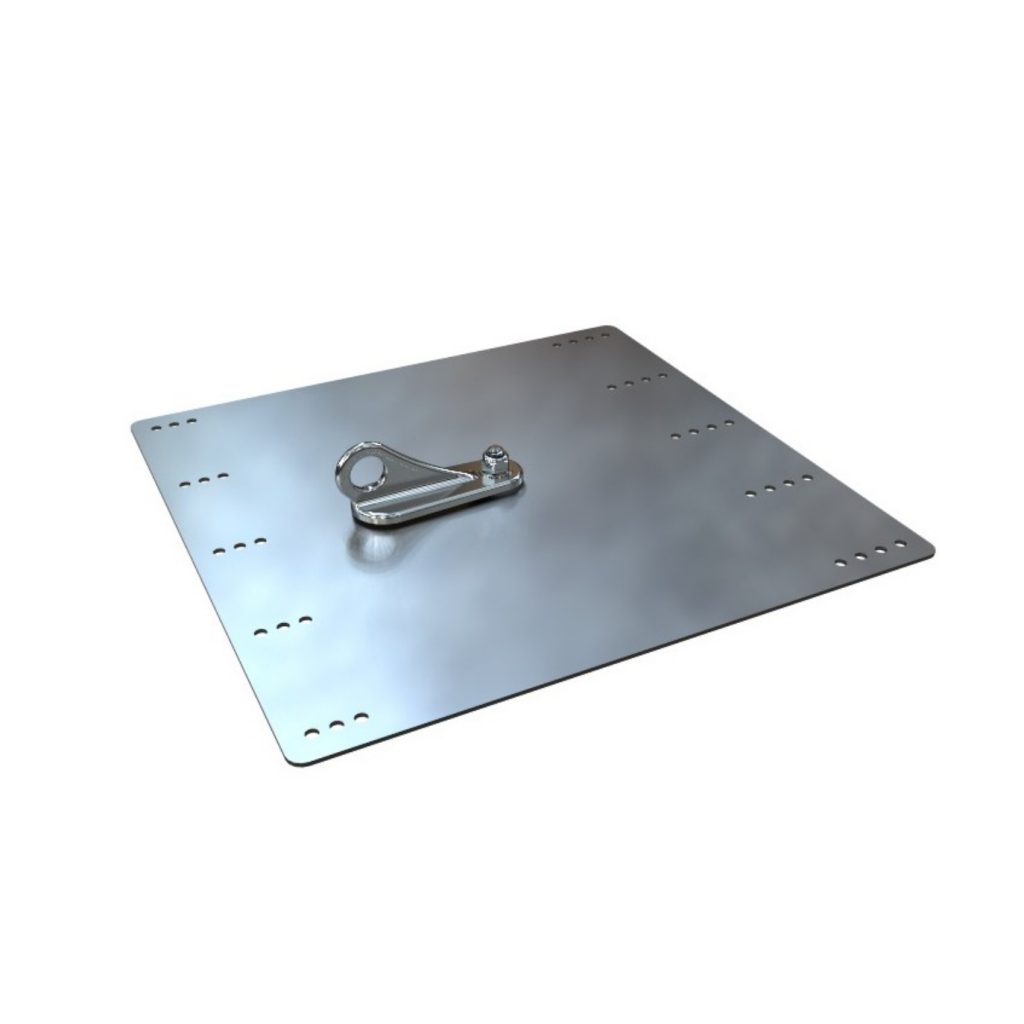

Special Features:
- Heavy duty swivel eye bolt
- Full grade 316 stainless steel construction
- Quick and easy installation
- Suitable for both steel and timber structures
Material Used:
Base plate: 3mm grade 316 stainless steel
Swivel anchor: Investment cast 316 Stainless Steel
Finish:
Base plate: 2B stainless steel (can be powder coated)
Swivel anchor: Electro polish
Ultimate Load:
15 kN
Dimensions:
- Size of plate – 337mm x 347mm
- Eye Diameter –25 mm
- Weight – 3,040 grams
Fixing Details:
- Timber rafter/ batten – min 70mm x 35mm
- Steel Purlin – min gauge 150 x 1.2 mm, 50mm x 100mm
- Roof Sheet – min gauge 0.42mm
- LYSAGHT TOPSPAN® 40 top hat, 550MPa min yield strength
Uses:
Designed for abseiling and to support a fall arrest load of 15 KN in any direction (always in sheer) provided a suitable personal shock absorber is used.
Installation by trained and certified personnel in accordance with AS/NZS 4488.2:1997, ISO 22846 (2003) AS/NZS 1891.4:2009 and manufacturer’s instructions.
Installation & Maintenance
Maintenance:
Inspection required by competent person at intervals not exceeding 12 months as specified in AS 1891.4:2009 and ISO 22846 (2003)
Standards:
Complies with WHS Act 2011 and relevant Codes of Practice. Australian Standard – AS/NZS 1891.4:2009, AS/NZS 4488.2:1997, AS/NZS 5532:2013 and ISO 22846 (2003)
