SPECIAL FEATURES:
- Tapered end to fit SDS setting too ST-P
- Pointed chisel tip
Material Used:
316 Stainless Steel
Finish:
Bright
Dimensions:
- Overall length – 145 mm
- Thread pitch – 1.25 mm
- Weight – 100 grams
Fixing Details:
Chemset 1 x Hilti HVU2 M12 or injectable equivalent (hole 25 DIA)
Uses:

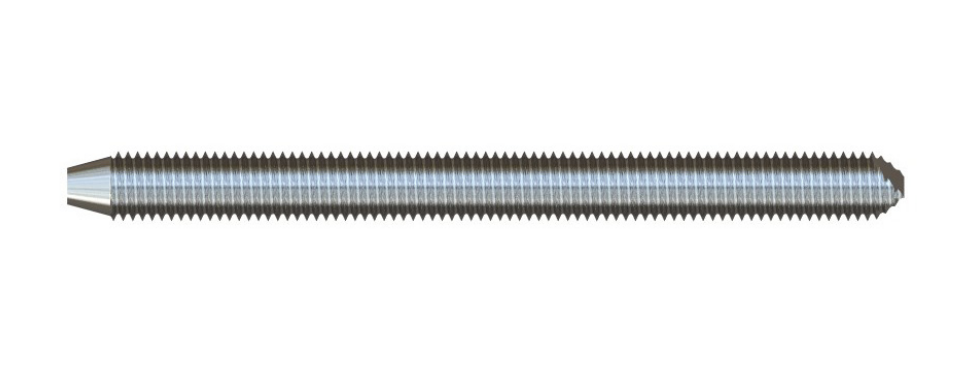

AR-P M12x145 is designed to support chemical anchors and static line brackets in concrete. For use with Hilti HVU capsules or any anchoring chemical of equivalent strength.
Installation by trained and certified personnel in accordance with AS/NZS 1891.4:2025, AS/NZS 5532:2025, ISO 22846 (2020) and manufacturer’s instructions.
Product Warranty:
10 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations.
Important Note:
Failure to supply and/or install proprietary product in accordance with above standards and codes, specifications and instructions voids complete system certification and/or warranty.
Maintenance:
Inspection and load testing required by competent person at intervals not exceeding 12 months as specified in AS 1891.4:2025, and ISO 22846 (2020).
Standards:
AS/NZS 1891.4:2025, AS/NZS 5532:2025
ISO 22846 (2020)
