The anchor is designed for structural fastening applications including safety systems, structural attachments, and engineered anchorage installations where corrosion resistance and reliable load performance are required.
Independent mechanical testing has been conducted to verify the tensile and shear performance of the anchor when installed in reinforced concrete.
The anchor plate features a raised eye connection allowing 360° load orientation.

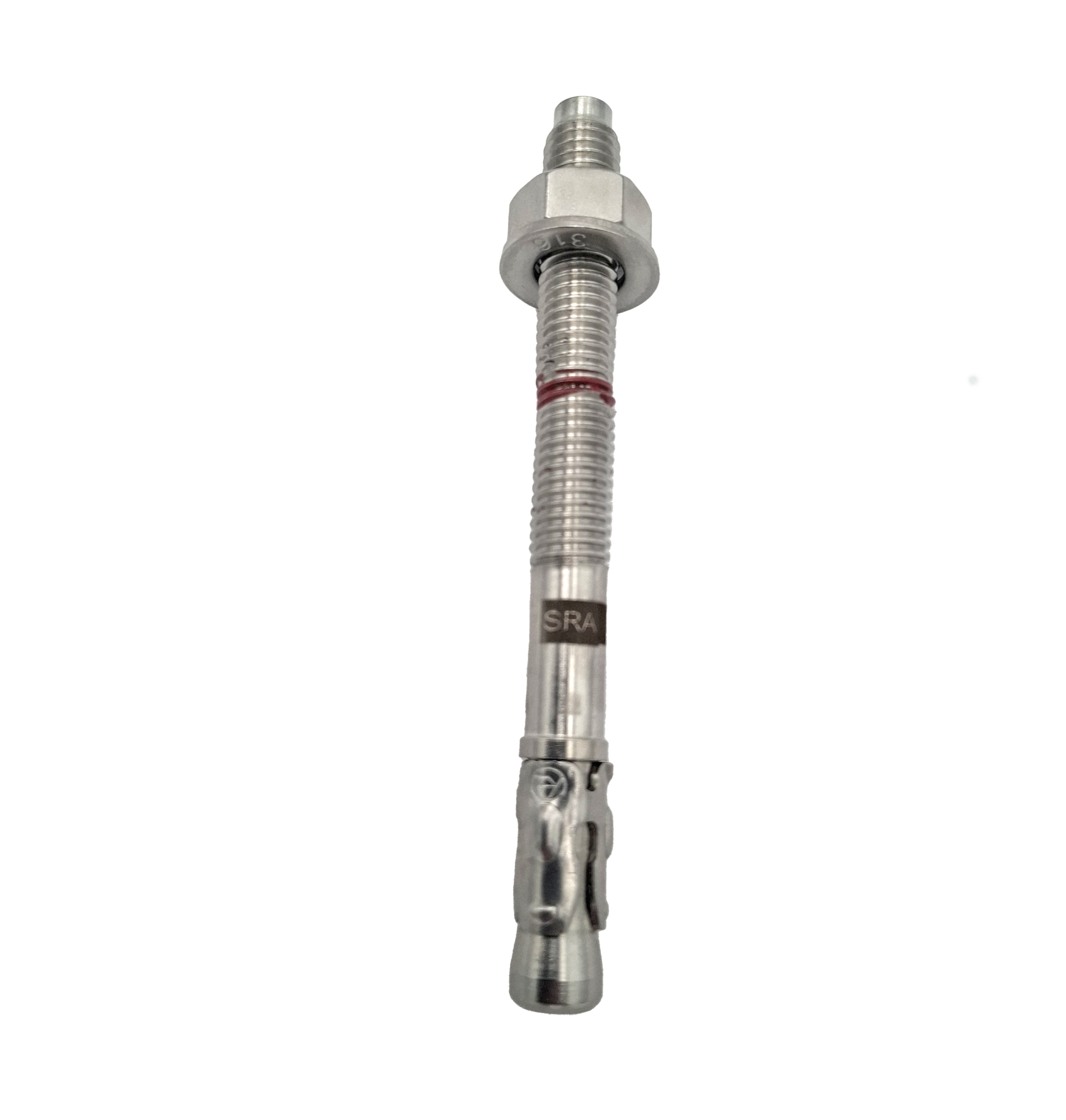

Anchor Type: Mechanical wedge anchor
Diameter: M12
Overall Length: 125 mm
Thread Size: M12 × 1.75
Material: 316 Stainless Steel
Maximum Fixture Thickness: 10 mm
Minimum Effective Embedment: 95 mm
Installation Torque: 50 Nm
Typical applications include:
- Roof safety anchor systems
- Structural steel attachments
- Mechanical equipment fixing
- Safety line installations
- General structural fastening in reinforced concrete
Installation & Maintenance
Tips for Installers:
- Always clean and blow out drilled holes thoroughly before chemical anchoring.
- Document installation for traceability and certification purposes.
