Special Features:
- Easy to install system
- All stainless steel components
- Up to 10 metres fixing intervals
- Hands free operation utilizing SRA glider
- Rugged stainless steel shock absorber
- Extra strong braced end anchors
Material Used:
Investment Cast 316 Stainless Steel & 316 Stainless Steel
Finish:
Electro polished
Number of Users:
2 Persons/Line
1 Person/Span
Dimensions:

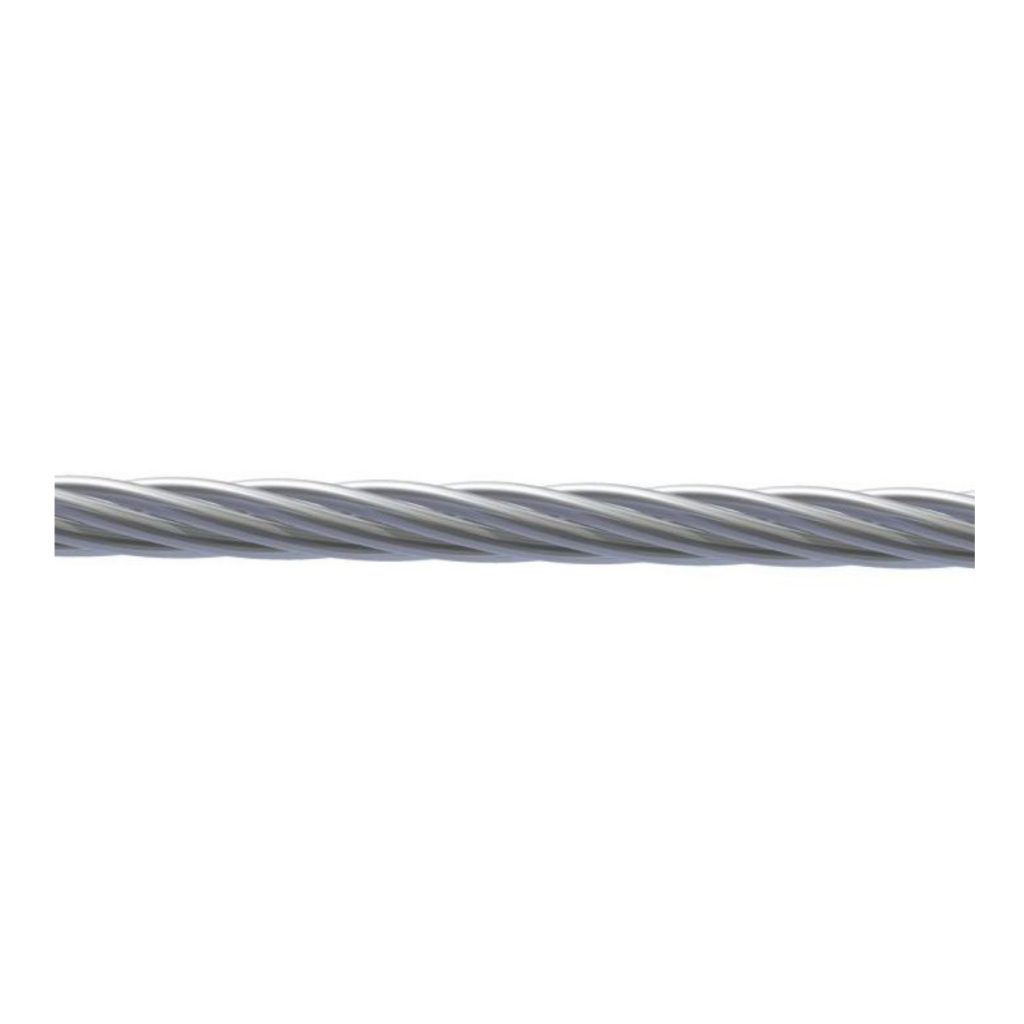

- Cable – Stainless Steel 8 mm, 7×7 construction
- Cable height – 125 mm
Intermediate Spacing:
- 3 – 20m – min 3m: max 4m spacing
- 20 – 30m – min 3m; max 6m spacing
- 30 – 35m – min 3m; max 8m spacing
- 35 – 305m – min 3m; max 10m spacing
Fixing Details:
SRA static line can be attached to most structurally sound steel roofs, using the supplied fixings.
Uses:
The SRA static line is designed for installation on metal roofs, providing continuous fall protection at unprotected edges in compliance with AS/NZS 1891.2:2001.
Maintenance:
Inspection and load testing required by competent person at intervals not exceeding 12 months as specified in AS 1891.2:2001
Standards:
Complies with WHS Act 2011 and relevant Codes of Practice.
Australian Standard – AS/NZS 1891.2:2001
