Special Features:
- Robust design
- Full traceability
- Fully engineered and independently tested
Material Used:
Investment Cast 316 Stainless Steel
Finish:
E-Polished
Ultimate Load:
28 kN
Fall Arrest Capacity:
15 kN
Dimensions:
- Height – 150 mm
- Eye Diameter – 2 x 16 mm attachment hole
- Weight – 1,565 g
Fixing Details:
- 1 x Through bolt M12 (hole 14 DIA)
- 1 x Chemical HILTI HVU M12 or equivalent (hole 14 DIA)
Uses:

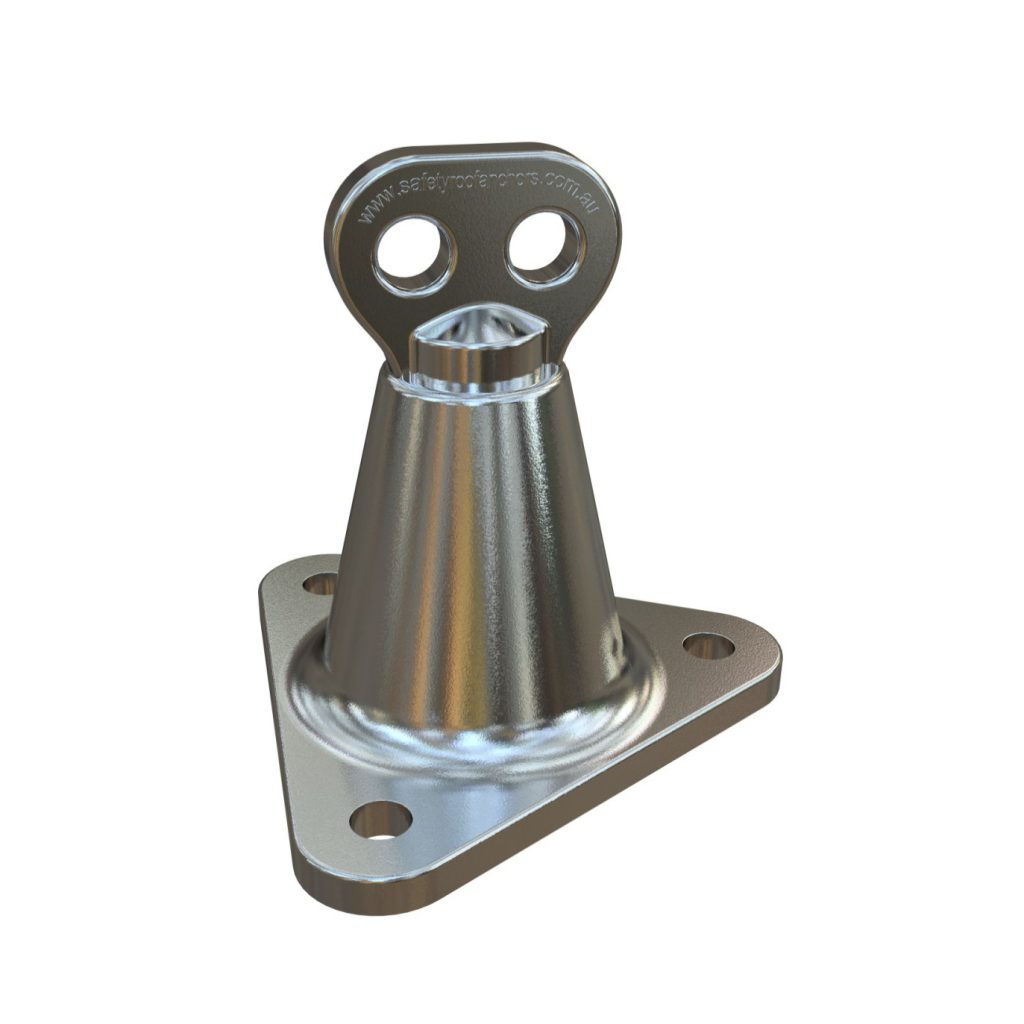

PSL01 can be used as a static line end anchor point or as a bracing to add strength to existing static line end anchor point.
Installation & Maintenance
Maintenance:
Permanent installed anchorages inspection required by competent person at intervals not exceeding 12 months as specified in AS 1891.4:2009/AS/NZS 4488.2:1997
Standards:
Complies with – WHS Act 2011 Australian Standard – AS/NZS 1891.4:2009, AS/NZS 4488.2:2001
