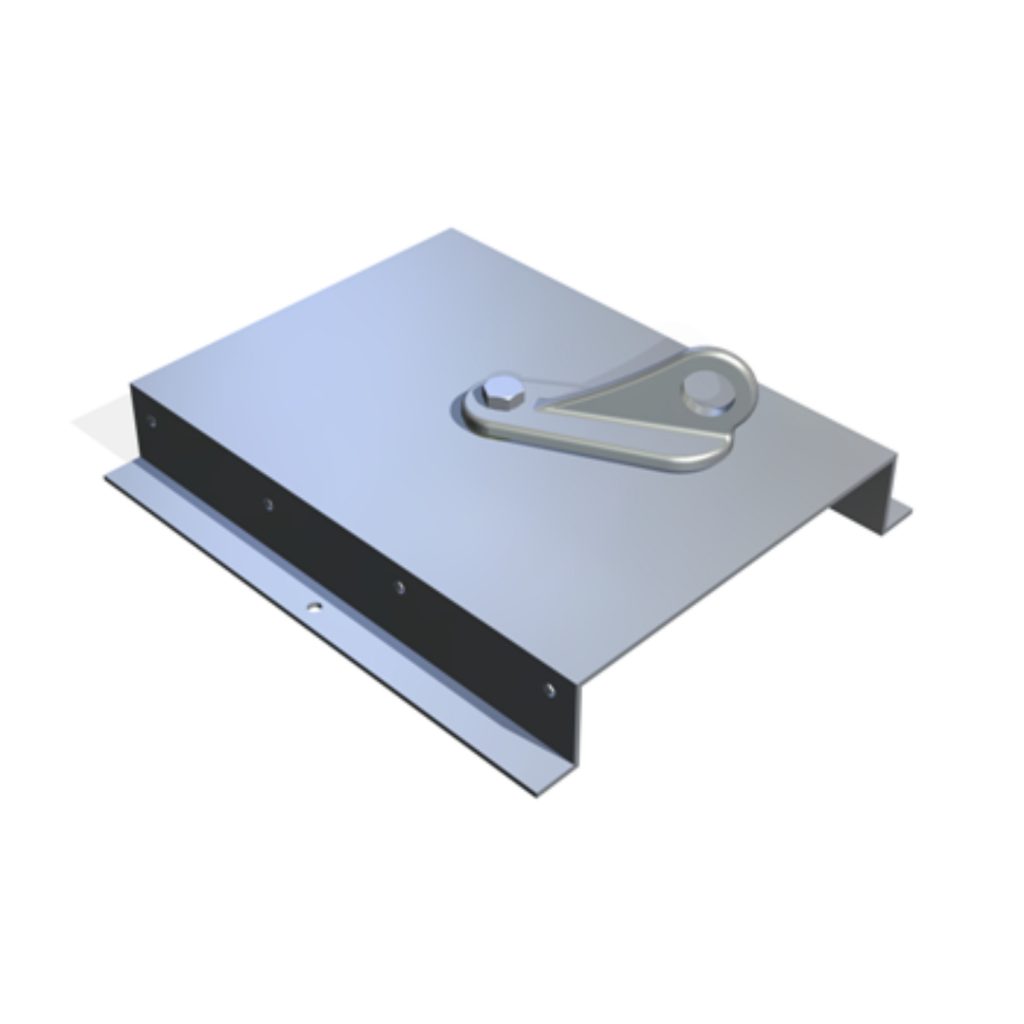

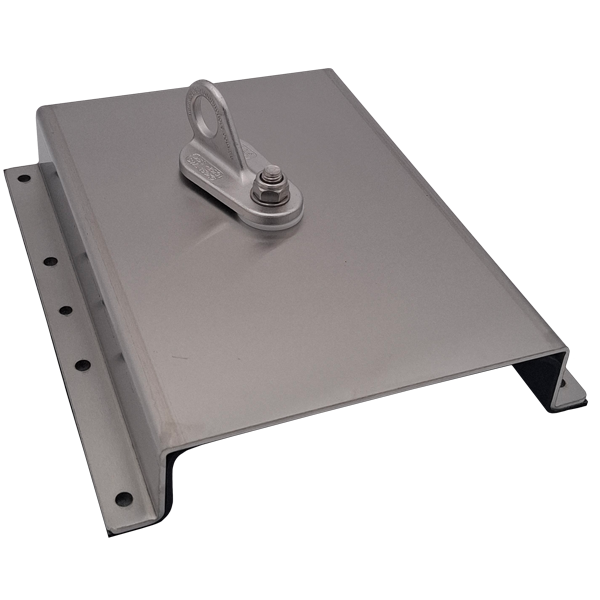

Special Features:
- Swivelling anchor point
- Easy installation doesn’t require access to the underside of
roof - Unique way of fixing works in unison with the host structure
- Suitable for abseiling and fall arrest
- Suitable for both steel and timber structures
Material Used:
Profile Grip plate: 3mm grade 316 stainless steel
Swivel anchor: Investment cast 316 Stainless Steel
Finish:
Profile Grip plate – 2B Stainless Steel (can be powder coasted)
Swivel anchor – Electro polish
Ultimate Load:
15 kN
Dimensions:
- Length of plate – 300 mm
- Eye Diameter – 25 mm
- Weight – 3,080 Kg
Fixing Details:
- Timber rafter/ batten – min 70mm x 35mm
- Steel Purlin – min gauge 150 x 1.2 mm
- Roof Sheet – min gauge 0.42mm
Uses:
Designed for industrial rope access (abseiling) and to support a fall arrest load of 15 KN in any direction (always in sheer) provided a suitable personal shock absorber is used.
Installation by trained and certified personnel in accordance with ISO 22846 (2020), AS/NZS 1891.4:2025 and manufacturer’s instructions.
Installation instructions
Things to Know:
Profile Grip (PG 2 – Brownbuilt) anchor point can be used for rope access (abseiling) as well as to support a fall arrest load of 15 kN when a suitable personal shock absorber is used. Profile Grips can be used on all structurally sound roofs with either timber or steel underlying structure of the following minimum requirements:
- Timber structure: Minimum size rafter/batten – 70mmx 35mm
- Steel structure: Minimum purlin gauge – 150mm x 1.2mm
- Minimum roof size: There must be minimum of 3 purlins supporting the roof sheet
- First purlin or batten: Never install Profile Grips into the first purlin or batten on the roof’s edge!
- Loading: Always load the Profile Grips in sheer under an angle not exceeding 20° with the surface of the roof.
- Roof Sheet: Designed specifically for BROWNBUILT roof sheet only! Minimum sheet gauge – 0.42mm.
Tools Needed:
Cordless drill, 8mm drill bit, hex bit driver, rivet gun, brush and dust pan or vacuum
Installation Steps:
- Identify the roof profile. Refer to the picture above for dimensions.
- Identify the host structure. Is it timber or metal? Set aside the right screws.
- Locate purlin (or batten) and place the Profile Grip down onto the roof sheet. The central holes on the bottom flanges (1) must be
positioned over the centre of the purlin or batten. - Install 2x 14G screws through the holes (1), through the roof sheet into the purlin or batten. Be sure you use the correct fixing screws
for the steel or timber structure. Do not over tighten. - Drill 8 holes into the roof sheet through the pre-drilled holes (2) of the Profile Grip using 8mm drill bit.
- Install eight aluminium bulbtite rivets provided using rivet gun.
- Remove any steel shavings to prevent roof corrosion and install a weatherproof certification tag
- The Profile Grip is now ready to be used.
Annual Re-certification:
All anchor points must be inspected and certified before their initial use and subsequently on regular basis to satisfy the requirements set out in AS/NZS 1891.4:2025, AS/NZS 5532:2025 and ISO 22846 (2020).
Note:
The roof structure must be assessed by a structural engineer unless it is clear to a suitably qualified person that it is capable of withstanding the forces imposed on it during arresting of a fall and during work positioning.
Maintenance:
Inspection required by competent person at intervals not exceeding 12 months as specified in AS 1891.4:2025, and ISO 22846 (2020).
Standards:
AS/NZS 1891.4:2025, AS/NZS 5532:2025
ISO 22846 (2020)
