Special Features:
- 360° swivelling anchor point
- Used for both Fall arrest/Rope access
Material Used:
Investment Cast 316 Stainless Steel (eye and base plate)
Grade 316 stainless steel (rod)
Finish:
Bead blast or Electro polish
Abseil Capacity:
15 kN
Fall Arrest Capacity:
15 kN
Dimensions:
- Length of plate – 95 mm
- Eye Diameter – 25 mm
- Weight – 260 g
Fixing Details:
- 1 x Through bolt M12 (hole 14 DIA)
- 1 x Chemical HILTI HVU2 or equivalent M12 (hole 14 DIA)
- 1 x Through bolt M16 (hole 18 DIA)
- 1 x Chemical HILTI HVU2 or equivalent M16 (hole 18 DIA)
Uses:

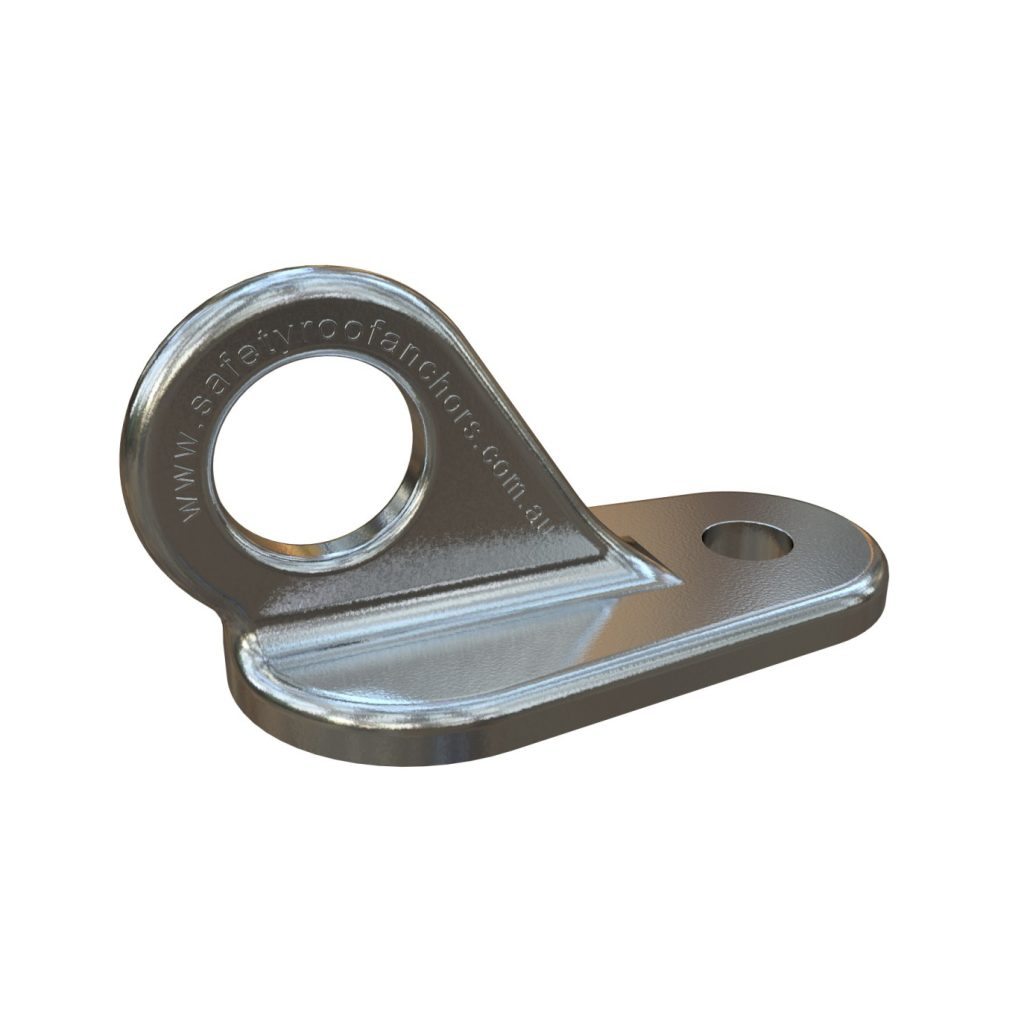

AA406 is designed for use in industrial rope access (abseiling) and to support a fall arrest load of 15 KN in all directions (always in sheer) provided a suitable personal shock absorber is used.
Installation by trained and certified personnel in accordance with AS/NZS 4488.2:1997, AS/NZS 1891.4:2009, ISO 22846 (2003) and manufacturer’s instructions.
Installation & Maintenance
Maintenance:
Inspection and load testing required by competent person at intervals not exceeding 12 months as specified in AS 1891.4:2009, AS/NZS 4488.2:1997 and ISO 22846 (2003).
Standards:
Complies with WHS Act 2011 and relevant Codes of Practice. Australian Standard – AS/NZS 1891.4:2009, AS/NZS 4488.2:1997, ISO 22846 (2003) and AS/NZS 5532:2013
