Special Features:
- Unique robust design
- Complete traceability
- High profile design
Material Used:
Investment Cast 316 Stainless Steel (Post and the Eye)
316 Stainless Steel (Bolt)
Finish:
Electro polished
Abseil Capacity:
N/A
Fall Arrest Capacity:
N/A
Dimensions:
- Overall height – 100 mm
- Weight – 1,240 g
Fixing Details:
- 3 x Chemical HILTI HVU2 or equivalent M12 (hole 14 DIA)
- 3 x Through bolt M12 (HOLE 14 DIA)
Uses:

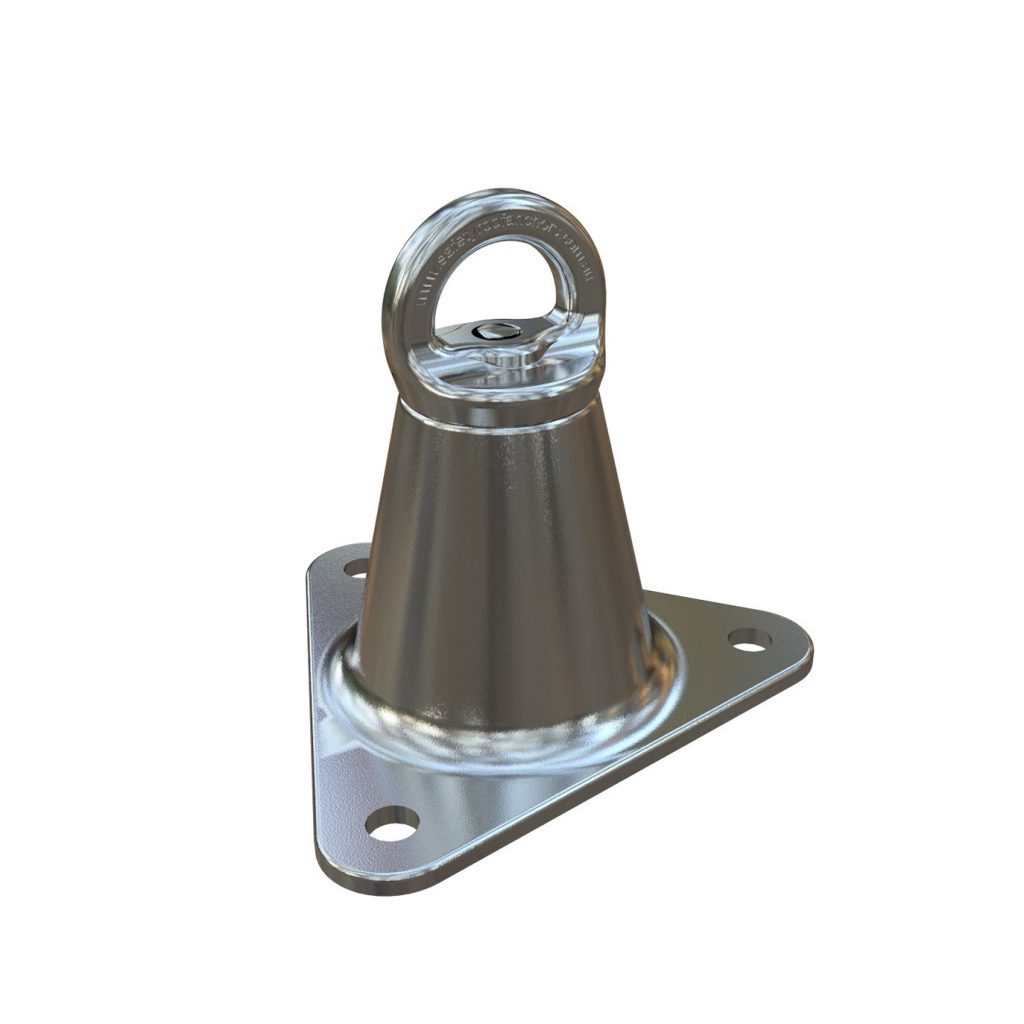

AA404 is useful in some applications where the extra height of the anchorage is important such as installations through topping. Installation by trained and certified personnel in accordance with AS/NZS 1891.4:2025, ISO 22846 (2020) and manufacturer’s instructions.
Product Warranty:
10 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations.
Important Note:
Failure to supply and/or install proprietary product in accordance with above standards and codes, specifications and instructions voids complete system certification and/or
warranty.
Maintenance:
Inspection and load testing required by competent person at intervals not exceeding 12 months as specified in AS 1891.4:2025, and ISO 22846 (2020).
Standards:
AS/NZS 1891.4:2025, AS/NZS 5532:2025
ISO 22846 (2020)
